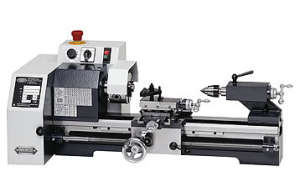

s p e c i f i c a t i o n s |
|
description |
metric |
standard |
| work area |
| distance between centers |
350mm |
13.7" |
| height of centers |
100mm |
3.9" |
| swing over bed |
120mm |
4.7" |
| travel of longitudal slide |
|
|
| travel of cross slide |
100mm |
3.9" |
| travel of top slide |
50mm |
1.9" |
| rotation of top slide |
360degrees |
| headstock |
| taper of spindle bore |
mt3 |
| hole through spindle |
20mm |
| rotational accuracy |
0.005mm |
0.0002" |
| cylindrical turning to 100mm (4") without support |
0.01mm |
0.0004" |
| motor |
| voltage |
230v, 50/60hz |
| power consumption |
1.4kw (1.5hp) |
| spindle speed |
45-2300 rpm, infinitly variable |
| feed |
| automatic feed |
0.085mm/rev and 0.16mm/rev |
0.0033 inch/rev and 0.0063 inch/rev |
| thread cutting |
0.4mm - 3.0mm |
10 to 32 tpi |
| tailstock |
| taper in tailstock spindle |
mt2 |
| spindle travel |
65mm |
2.56" |
| lateral displacement |
+/-10mm |
+/-0.39" |
| dimensions |
|
|
| overall mm/inch |
950l x 400w x 400mmh |
36"l x 16"w x 16"h |
| weight net |
71kg |
157lb |
| weight gross |
86kg |
190lb |
