| Description: |
| The
super precision TMP Spindle has a T.I.R. of .0001" enabling
the TMD Drill to accurately drill very samll holes ranging
from .002" to 5/32" diameter. All TMD motors, pulleys
and spindles are high speed dynamically balanced to provide
extremely smooth operations up to 30,000 RPM. |
| |
| Optional
Accessories: |
| Ablrecht
Keyless Drill Chucks, infinitely variable speed control (0-30,000
RMP) with 220/110V 50/60 Cycle Capabilities, Foot Pedal, Dial
Depth Gauge, Vises, Drills Bits, etc. |
|
|
SPECIFICATIONS |
TMD
100 SERIES |

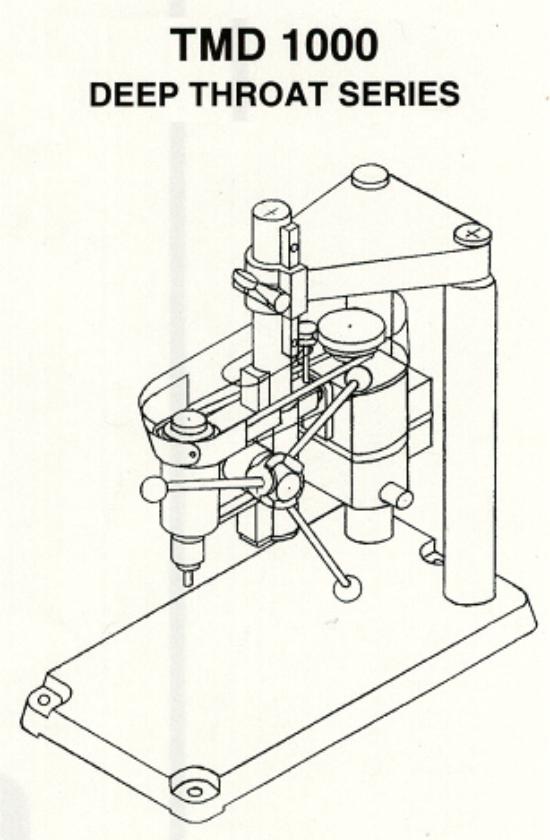

TMD
1000 SERIES |
| MAX.
WORK HEIGHT |
5
3/4” |
5”
|
| DIS.
CHUCK CENTER TO MOUNTING COLUMN |
2 1/2” |
8”
|
| SPINDLE
TRAVEL |
1
1/4” |
1
1/4” |
| SPINDLE
SPEEDS (3) |
9,500
17,000 30,000 RPM |
9,500
17,000 30,000 RPM |
| TABLE
SIZE |
4”
X 4” |
|
| BASE
DIMENSIONS (LxWxH) |
11
3/4” x 7” x 2 3/4” |
11
3/8” x 6 7/8” x 1 1/2” |
| OVERALL
DIMENSIONS (LxWxH) |
11
3/4” x 7” x 15 1/2” |
13
1/8” x 7 1/8” x 18 1/2” |
| NET
WEIGHT |
23
LBS |
25
LBS |
| SHIP
WEIGHT |
34
LBS |
40
LBS |
|
