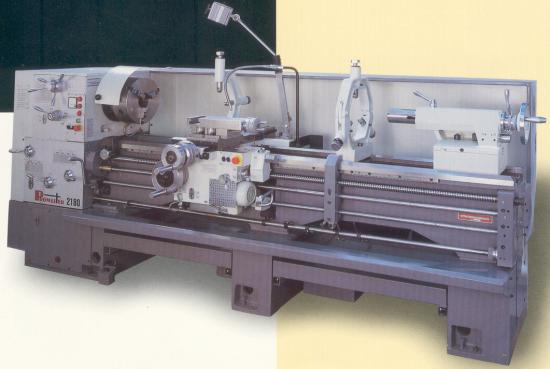

Promaster 2100   Click on image to see enlargement Spindle Nose Headstock Headstock Interior Feed Box Selector Electrical Enclosure Electrical Enclosure Inside Bed Width and Bed Ways Webbing and Ribbing Track-Link Type Cable Carriers Carriage and Cross Slide Inch/Metric Handwheel Dials Lower Carriage - Feed Rods and Limit Switches Tailstock Steady and Flow Rests 12" Universal Chuck 4-Jaw Independent Chuck Worklamp   Features: Fully clutched headstocks with fine quality Western European cluteches throughout. Constant main motor start/stop cycles eliminated. Heavy duty electro-magnetic spindle brake of rugged Western European design for fast, controlled stops. Pressurized and filtered lubrication system. Oversized precision tapered roller and double ball spindle bearings - 3 point design. 4.1" spindle bore on 2100 series 3.1" on 1700 series 10 HP main drive on 1700 and 15 HP on 2100 series. Great for full production work when fast metal removal is needed. 80 Threading choices and 80 feed choices with all popular American thread sizes included. Fully inch/metric switchable with a shift of a lever. No back gears to change. Independent filtered oil reservoir helps lower oil temp build-up, minimizing spindle thermal growth.             Main Specifications 2100 Promaster Height of centerline above the floor inch 43.5 Swing over bed inch 21 Swing over cross slide inch 13 Length of gap from spindle face inch 10.25 Swing over gap inch 29 Length of gap in front of face plate inch 6.45 Length of gap in front of T-slot jaws faceplate inch 7.244 Steady rests:       Standard roller jaw type-min/max capacity inch Ø0.63 - 7.086   Optional roller jaw type-min/max capacity inch Ø3.74 - 10.433 Follow rests:   Standard roller jaw type-min/max capacity inch Ø0.63 - 7.086   Optional roller jaw type-min/max capacity inch Ø3.74 - 10.433 Distance between centers, approximate inch 60, 80, 120 Maximum workpiece weight     - at headstock lbs 400 - between centers unsupported lbs 2000 - between centers with 1 stedy rest lbs 2500 Overall installed power kVA 16.5 BED SPECIFICATIONS     Overall length     60" between centers inch 118.110 80" between centers inch 133.858 120" between centers inch 173.228 Overall width inch 15.5 Hardness of bedways HB 350 - 400 HEADSTOCK SPECIFICATIONS     Spindle nose-flange type   D1-8 Camlock chuck mounting Spindle nose-flange type   MT 115 Hole diameter through spindle inch 4.1 Spindle speeds number   24 Spindle speed range RPM 10 - 1800 Type of clutches - Western European Electromechanical Type of brake - Western European Oil pump pressurized FEED GEARBOX SPECIFICATIONS Longitudinal Inch Feeds: Number   Range   inch/r 80 0.00105 - 0.2432 Cross Slide Inch Feeds: Number   Range   inch/r 80 0.00026 - 0.0608 Metric Threads:: Number   Range   mm 55 0.5 - 64 Threads per inch: Number   Range   T.P.I 80 9/32 - 64 Diametral Pitch: Number   Range   DP 80 9/32 - 64 Module Threads: Number   Range   MOD 55 0.5 - 64 Lubrication type Oil pump pressurized SLIDES AND SUPPORTS SPECIFICATIONS Max. cross section of the cutter mm 32x32 Cross slide and Compound rest screw pitch TPI 5 Cross slide travel inch 11.81 Graduations on cross slide hand wheel inch 0.001/Ø Travel of cross slide/revolution of hand wheel inch 0.2 Graduations of compound hand wheel inch 0.001 Travel of cross slide/revolution of hand wheel inch 0.2 Compound rest travel inch 5.125 Lathe centerline to top surface of compound inch 2 Adjustable stops number - cross   4 Length x width of crosslide inch 25 7/32x8 1/2 Length x width of compound slide inch inch 14 3/4x5 1/2 Antifriction lining of crosslide   TURCITE-B CARRIAGE SPECIFICATIONS     Leadscrew thread pitch TPI 2 Graduations of carriage apron hand wheel inch 0.01 Travel of carriage per revolution of hand wheel inch 1 Rack bar module MOD 2.54 Adjustable feeds stops number - longitudinal   6 Lubrication type   Unique pump manually actuated by operator Leadscrew diameter inch 1 9/16 Antifriction lining   TURCITE-B TAILSTOCK SPECIFICATIONS     Travel of tailstock barrel inch 8.34 Diameter of tailstock barrel inch 3.1 Taper of tailstock center   MT 5 Cross travel of tailstock (setover) inch 3/8 Tailstock screw pitch TPI 5 Graduations of tailstock hand wheel inch 0.001 Travel of tailstock barrel/revolution of hand wheel inch 0.2 MAIN DRIVE SPECIFICATIONS     Asynchronous 3-phase motore-type - metric frame   254T (160M)   configuration   230V/460V,60Hz   power HP 15   speed RPM 1725 Spindle drive input configuration   5 V-belt POWER RAPID TRAVERSE DRIVE SPECIFICATIONS     Asynchronous 3-phase motor-type   B14-71   configuration   230V/460V,60Hz   power HP 0.5   speed RPM 1800 COOLANT PUMP SPECIFICATIONS     Asynchronous 3-phase motor-type   MT Graymills   configuration   230V/460V,60Hz   power HP 1/8   speed RPM 3600 Overall installed power kVA 16.5 Overall width inch 53 Overall length 60" between centers   80" between centers   120" between centers inch inch inch 118 133 173 Overall weight 60" between centers, approx. (approx.) 80" between centers, approx.   120" between centers, approx. lbs lbs lbs 7000 7800 8200
