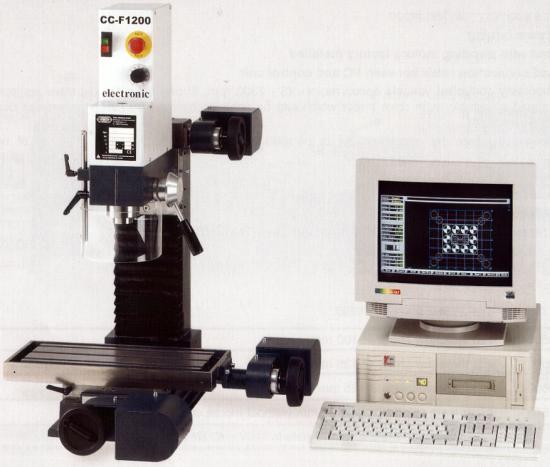

| Prazi II Apollo High Precision Square Column Mill |
| |
|
| |
| Description: |
- toolmaker's
accuracy with test report
- CNC
software milling
- Control
housing with stepping motors factory installed
- protection
cover
- dongle
and connection cable between PC and control unit
- with
electronically adjustable motor 180 - 3000 r.p.m.
equipped with a dynamic speed-adjustable main drive
motor which can be adjusted by means of a potentiometer
over a wide range of cutting speed
- with
a single-phase series commutator motor in parallel
flow quality with permanent number of revolutions
super vision
- toolholder
MT2
- dovtail
guides free of play in all axes
- adjustable
feed screws free of play in all 3 axes using adjustable
bronze double nuts
- slow
foward feed in Z axis
- drilling
depth end top
- 2
fold bags to protect guids
- exact
clamping of the quill on the toal generated suface
in the milling head
- clean-cut
milling made possible by single clamping guides
- emergency
OFF
- PC's
are not included in our delivery range
|
|
|
| |
| Longitudinal
X-axis |
260
mm |
| Vertical
travel Z-axis |
280
mm |
| Cross
travel Y-axis |
150
mm |
| Power |
1,4
kW, 230 V, 50 Hz |
| Spindle
speed r.p.m. |
180-3000 |
| Slewing
capacity both sides |
90º |
| Toolholder |
MT2 |
| Drilling
stroke |
40mm |
| Working
table |
450x180
mm |
| Number
of T-slots |
3 |
| Width
of T-slots |
12 |
| Truth
of rotation of the spindle nose |
0,005
mm |
| Precision
smoothness of the clamping surface |
0,01
mm |
| Distance
milling table - spindle nose |
min.
90 mm, max 370 mm
|
| Working
range spindle nose - support |
185
mm
|
| Positioning
accuracy |
+-0,015
mm |
| Path
rate feed X, Y and Z axis |
| In
forward speed |
| In
rapid motion |
|
| |
| min
60 mm/min |
| max
500 mm/min |
|
| Machine
dimensions |
W700xD600xH950
mm |
| Weight
net (without packing) |
110
kg |
| Weight
gross (with packing) |
118
kg |
|
|
| |
|
|
|
