Welcome to International Sales & Marketing Group Products
  Click on pic to enlarge
Prazi II Apollo High Precision Square Column Mill
  • toolmaker's accuracy with test report
  • with electronically adjustable motor 180 - 3000 r.p.m. equipped with a dynamic speed-adjustable main drive motor which can be adjusted by means of a potentiometer over a wide range of cutting speed
  • with a single-phase series commutator motor in parallel flow quality with permanent number of revolutions super vision
  • toolholder MT2
  • dovtail guides free of play in all axes
  • adjustable feed screws free of play in all 3 axes using adjustable bronze double nuts
  • slow foward feed in Z axis
  • drilling depth end top
  • 2 fold bags to protect guids
  • exact clamping of the quill on the toal generated suface in the milling head
  • clean-cut milling made possible by single clamping guides
  • emergency OFF
Longitudinal X-axis 260 mm
Vertical travel Z-axis 280 mm
Cross travel Y-axis 150 mm
Power 1,4 kW, 230 V, 50 Hz
Spindle speed r.p.m. 180-3000
Slewing capacity both sides 90º
Toolholder MT2
Drilling stroke 40mm
Working table 450x180 mm
Number of T-slots 3
Width of T-slots 12
Truth of rotation of the spindle nose 0,005 mm
Precision smoothness of the clamping surface 0,01 mm
Distance milling table - spindle nose

min. 90 mm, max 370 mm

Working range spindle nose - support 185 mm
Machine dimensions W700xD600xH950 mm
Weight net (without packing) 82 kg
Weight gross (with packing) 90 kg


Mills Astro-Brideport type
Prazi Benchtop BF400-002 Mill Head
Prazi Benchtop Powermill BF400 - 450
Prazi Benchtop BF450 Precision X-Y Mill Table

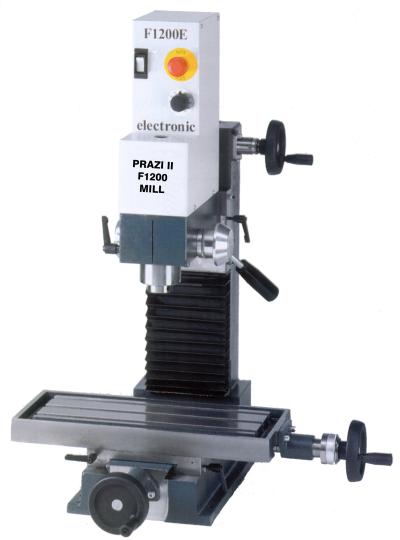

Prazi II Wabeco Benchtop F1200 & F1210E
Prazi II Wabeco Benchtop F1200 & F1210E (High Speed)
Prazi II Wabeco CNC Benchtop F1200cc
Prazi II Wabeco CNC Benchtop F1210cc
Lathes Prazi II Apollo Wabeco Series D2400 8 x 20"
Prazi II Apollo Wabeco Series D4000 8 x 20"
Prazi II Apollo Wabeco Series D6000 10 x 24"
Prazi II Apollo Wabeco Series D6000 10 x 24" CNC
Prazi II Apollo Wabeco Series D6000 10 x 24" CNC Retro Fit Kit
Prazi MD200 Miniturn 4 x 8"
Prazi SD300 Masterturn 5 x 12"
Prazi SD400 Powerturn 7.5 x 16"
Prazi SD500 Superturn 10 x 20"
Prazi SD300 Masterturn CNC 5 x 12"
Nardini Lathe Accessories
Promaster PM1700 17"
Promaster PM 2100 21"
Promaster PM 2400 24"
Sakai Benchtop Lathe ML360 6" x 14"
Omni Saw Omni Saw OS-001 Parts List Manual
Micro Drill Press Micro Drill Press Parts List Manual
Deep Throat Series Parts List Manual
Machine Tools
Accessories -Prazi - Wabeco - Micro Drill - Mills - Lathes - CNC
Omni Puller OP-1000 Parts List & Operations Manual
Aussie Drawbar ADB-123 A&T 158 Series Part List & Operations Manual
Air Die Grinder A&T ADG-1000 Parts & Operations Manual
Prazi II Wabeco Manuals
D2000 D2400 D3000l.PDF
